Connection types:
P-A type (bottom mount)
P-B type (bottom mount with back flange)
P-AD type (center back mount)
P-BD type (center back mount with front flange)
P-UD type (center back mount with u-clamp)

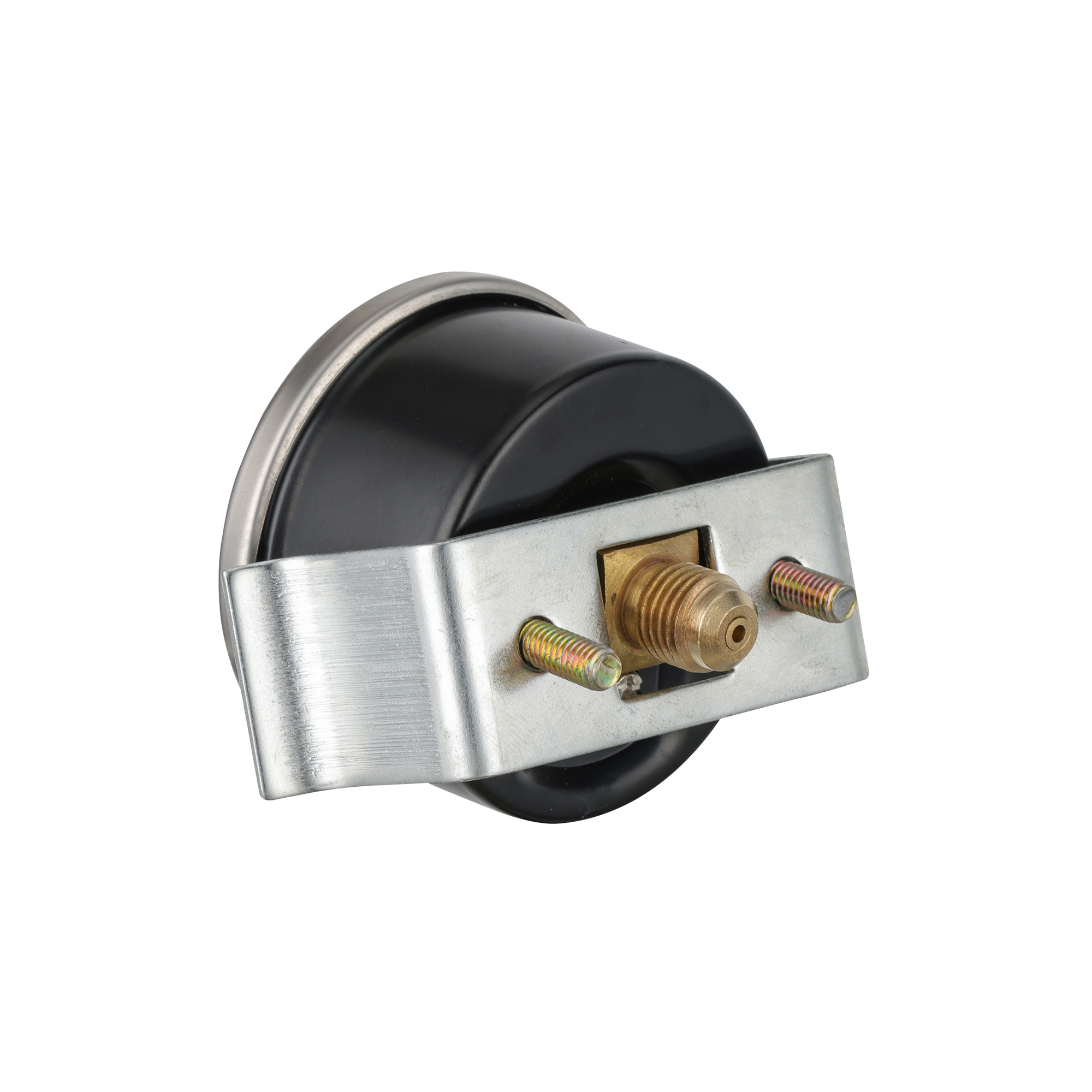

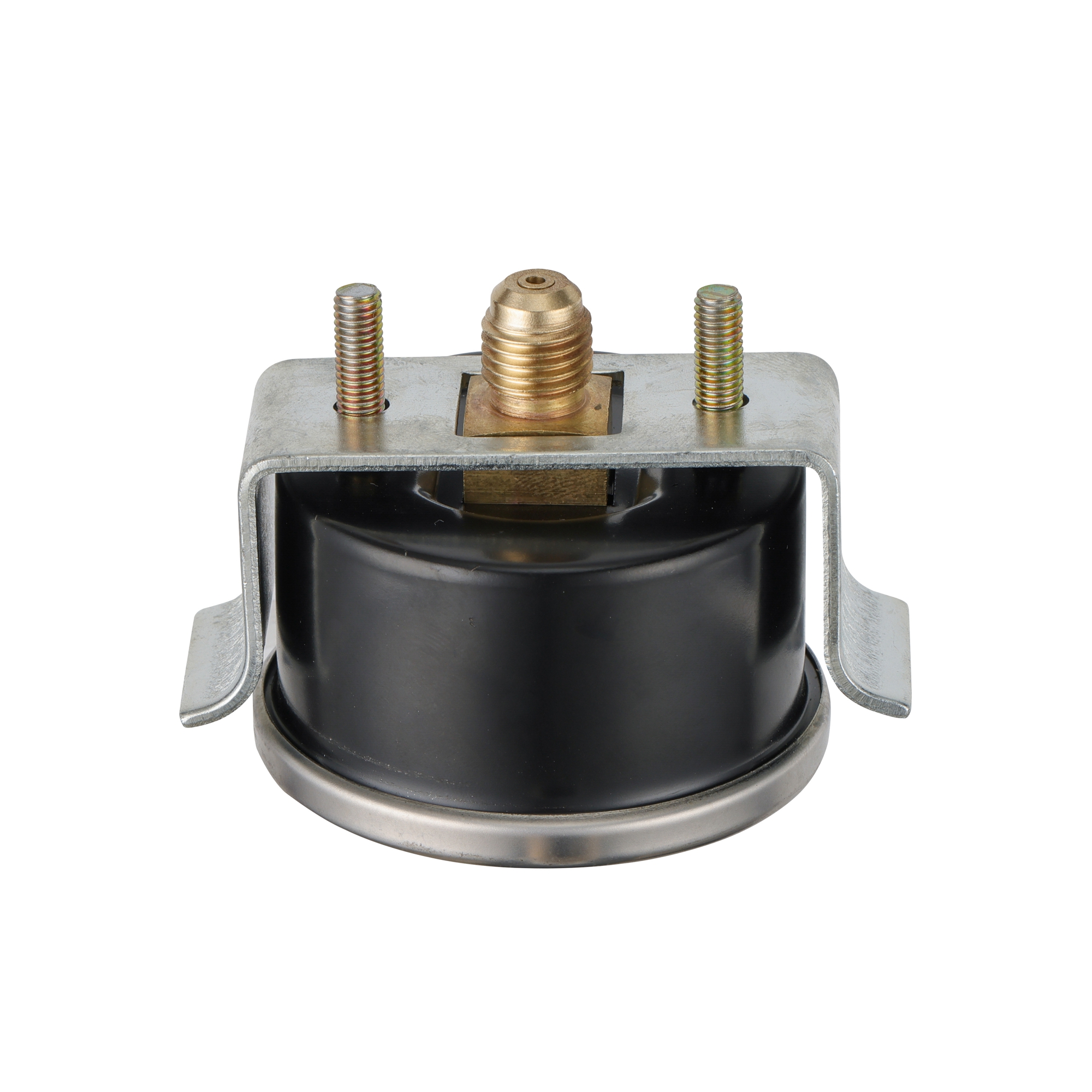

pressure gauge with u-clamp
Application:
water, air, gas, pump, compressor, regulator and working fluid not corrosive to wetted parts
Specification
Size: 1.5” (40mm), 2”(50mm), 2.5”(63mm) , 3”(75mm), 4”(100mm)
Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar)
Dial: white aluminum with markings and graduations
Window: polycarbonate, glass, plastic
Pointer: black finished aluminum
Ring: black painted steel, chrome plated steel, polished brass
Case: black painted steel, chrome plated steel, polished brass
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi
Connection: 1/8", 1/4", 3/8", 1/2" PT, NPT, BSP thread
Mounting: bottom, center back with surface, flush and u-clamp
Accuracy: 1.2"~2"(+/-2.5% of full scale), 2.5"up (+/-1.5% of full scale)
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time : 45 Days
FOB Port : Ningbo or Shanghai
