Connection types:

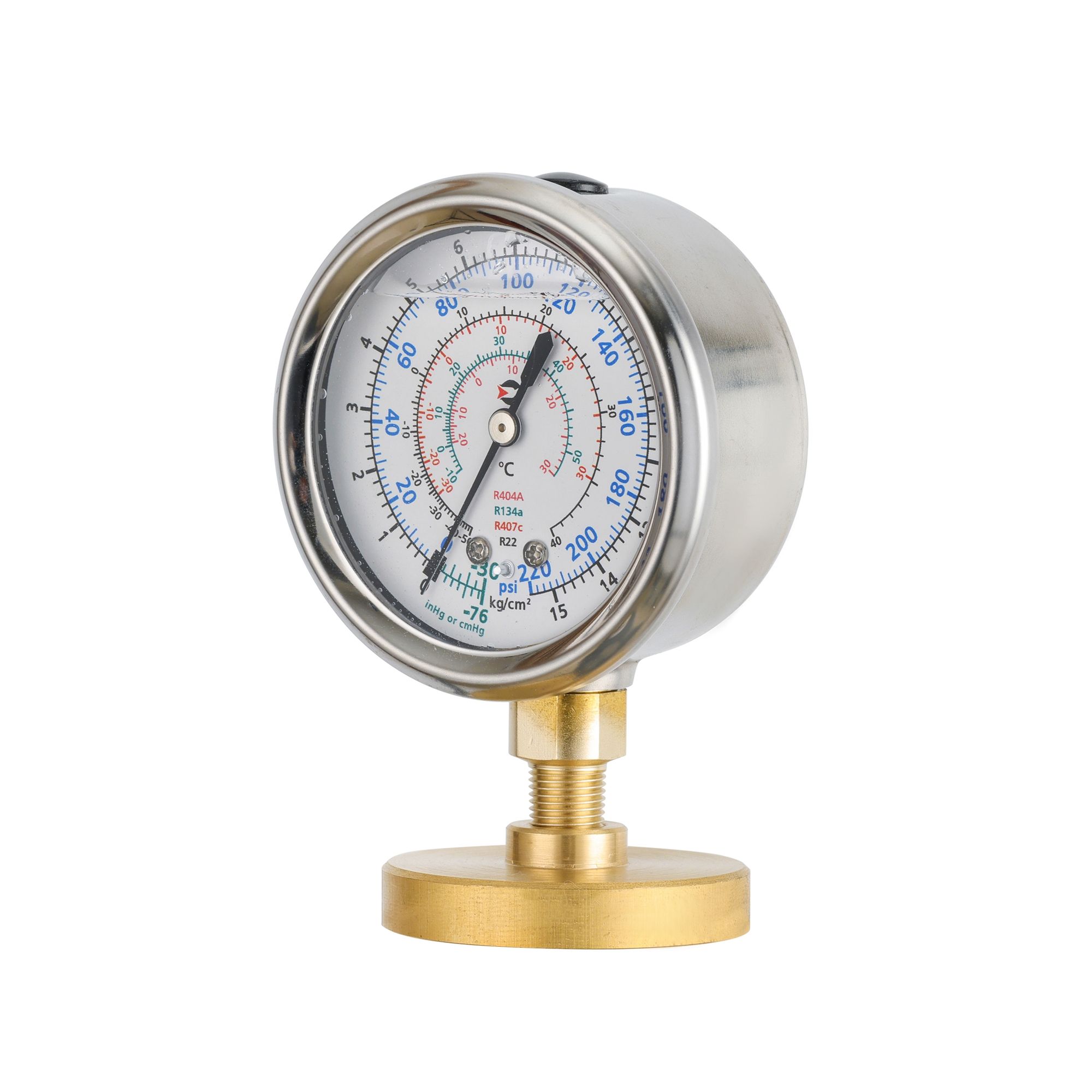

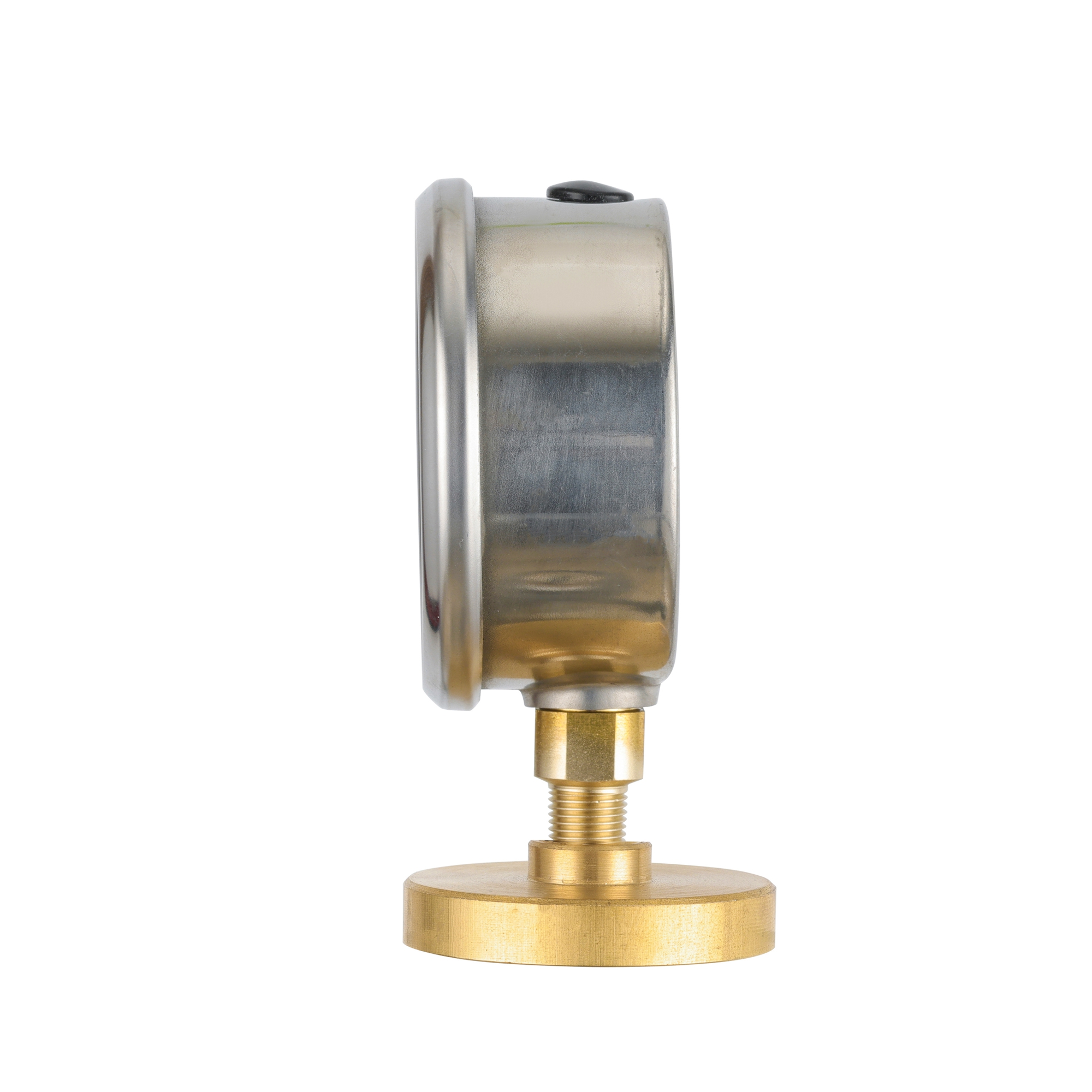

AF3 type (bottom mount)
AF5 type (center mount with front flange)
L-AF3 type (bottom mount)
L-AF5 type (center mount with front flange)
Optional: with light, easy to read at night
Application:
cooling system, portable manifolds
Specification
Size: 2.5”(63mm)
Measuring Range: compound ranging with temperature and pressure vacuum 76cmHg (30"Hg) up to 500 psi (35 bar)
Dial: white aluminum with markings and graduations
Window: threaded polycarbonate
Pointer: black finished aluminum
Ring: black (red, blue) painted steel, 304 stainless steel
Case: black (red, blue) painted steel, 304 stainless steel
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube
Connection: 1/8", 1/4", 3/8"PT, NPT, BSP, 7/16"UNF thread

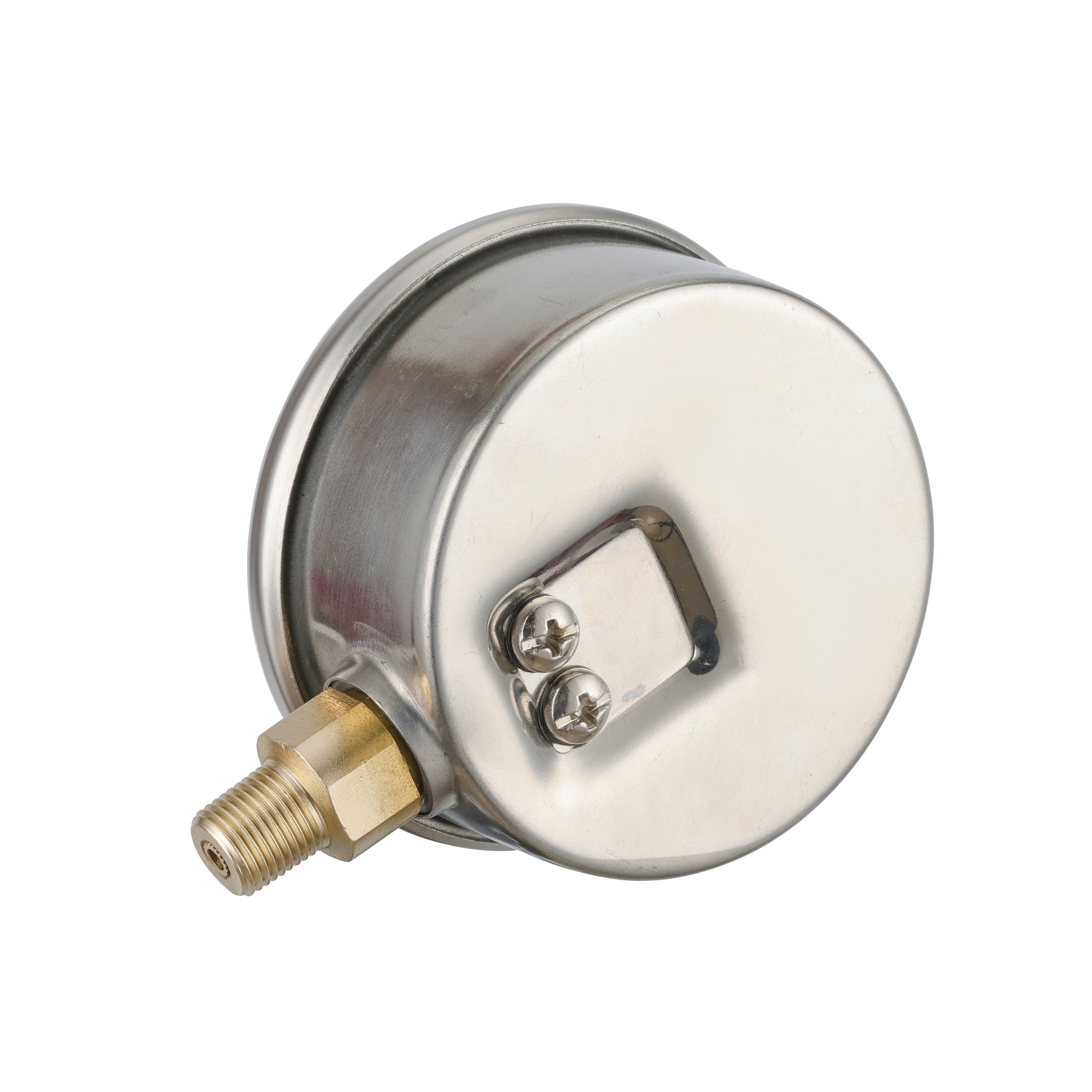

Mounting: bottom, center back with flush mount
Accuracy: +/-1.5% of full scale
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time : 45 Days
FOB Port : Ningbo or Shanghai
