Connection types:

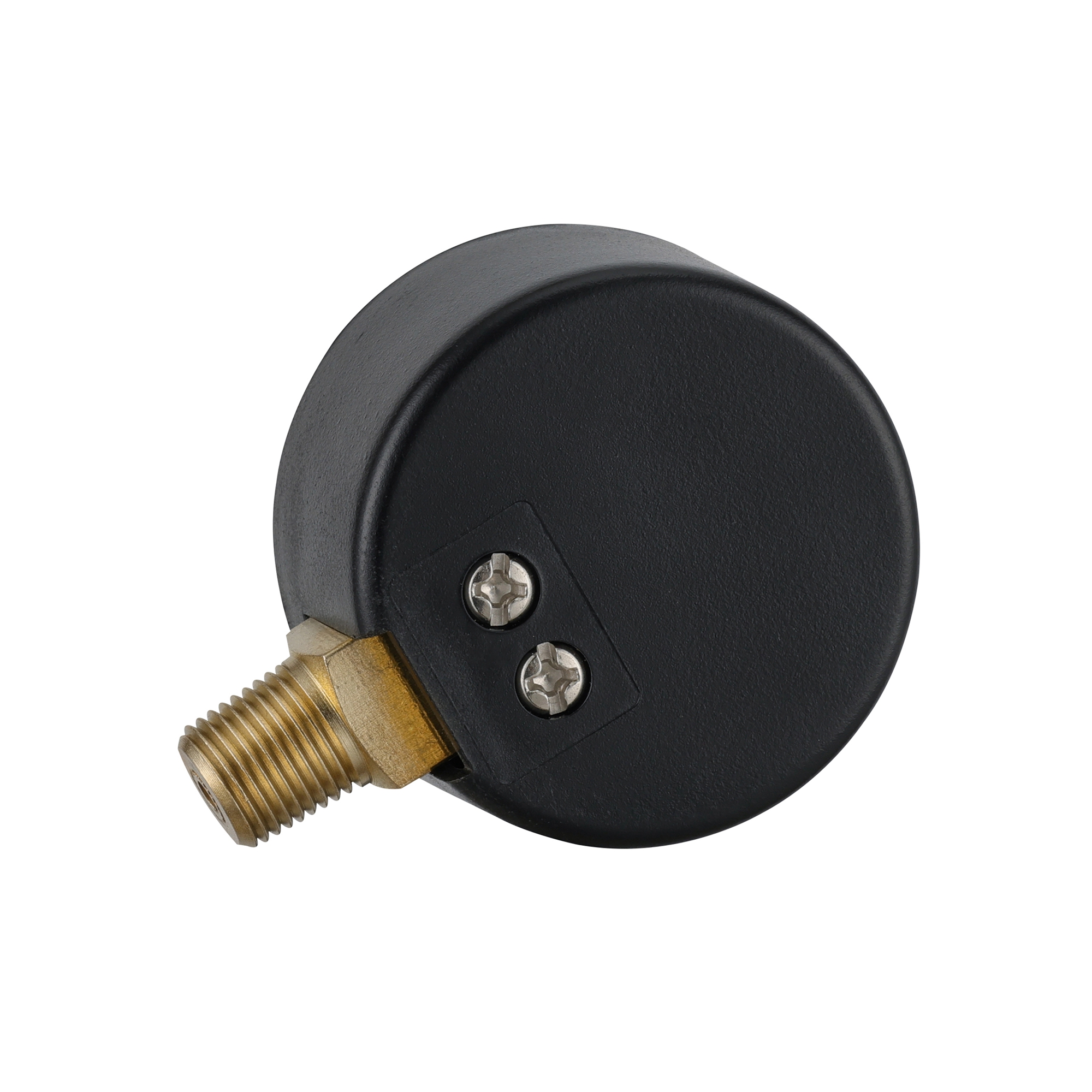

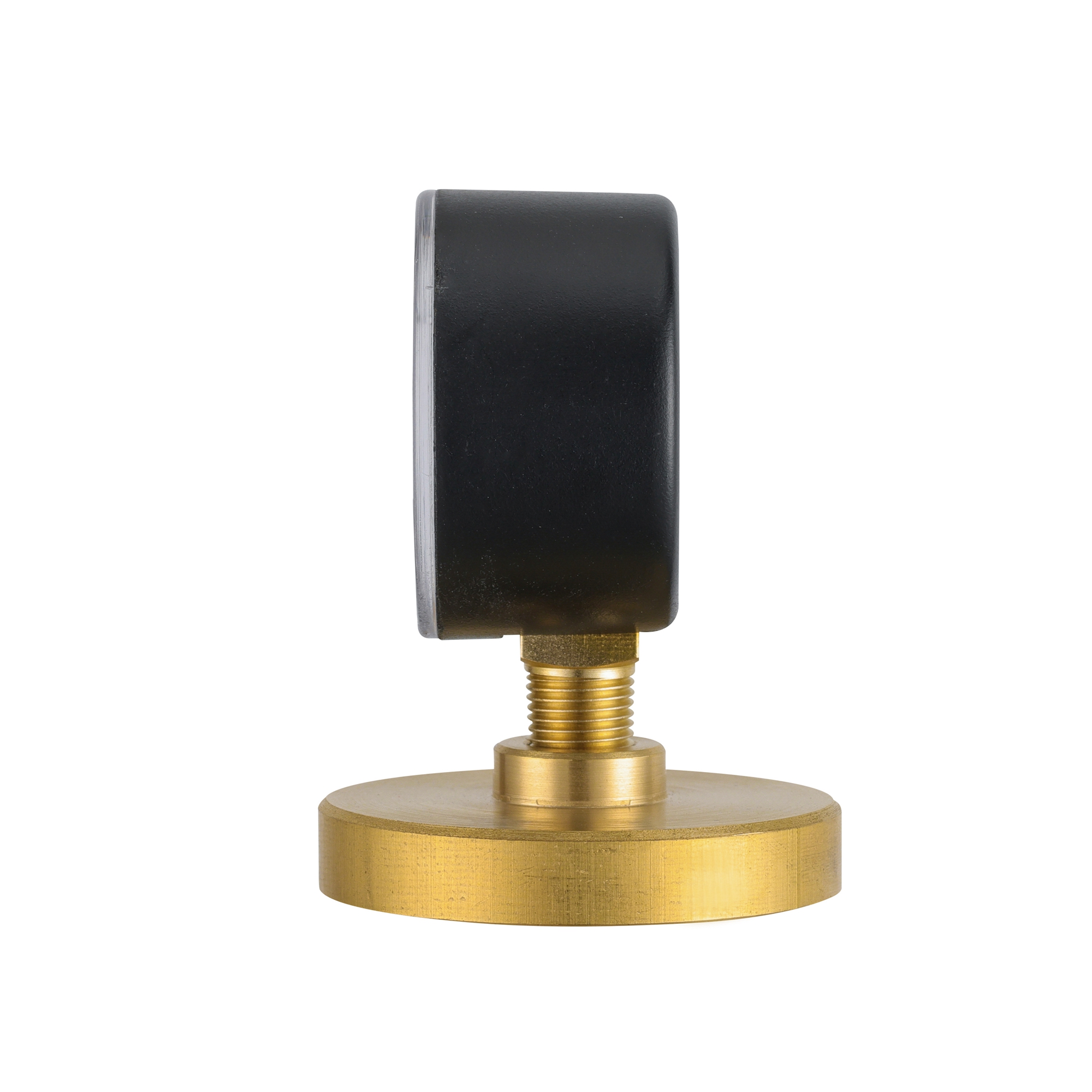

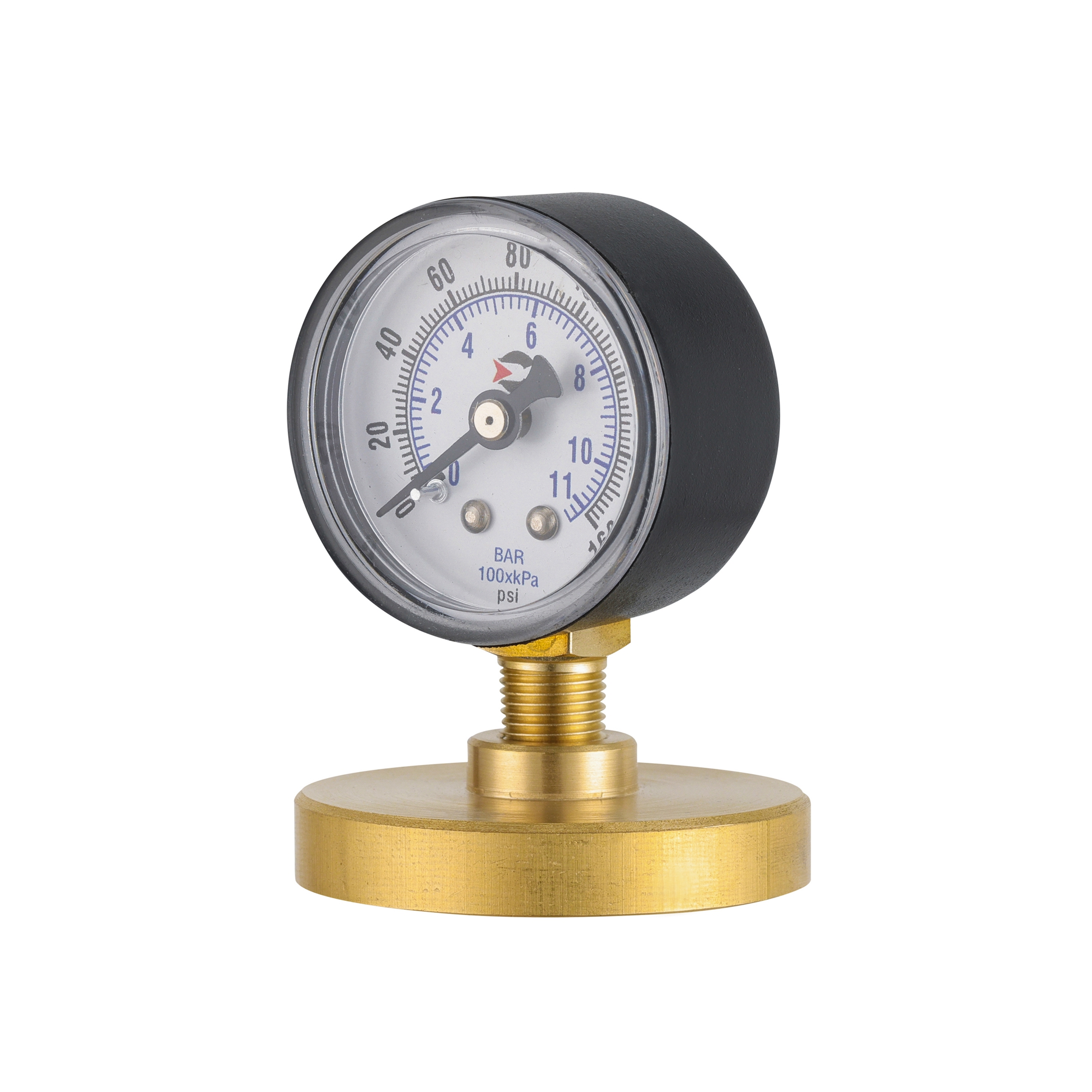

P-A type (bottom mount)
P-AD type (center back mount)
Optional with red pointer
Application:
water, air, gas, pump, compressor, regulator and other working fluid not in corrosion.
Specification
Size: 1.5”(40mm), 2”(50mm), 2.5”(63mm)
Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar)
Dial: white aluminum with markings and graduations
Window: snap-in plastic
Pointer: black finished aluminum
Case: black ABS
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi
Connection: 1/8", 1/4", 3/8", 1/2" PT, NPT, BSP thread
Mounting: bottom, center back
Accuracy: 1"(+/-3% of full scale), 1.5", 2"(+/-2.5% of full scale), 2.5", 3"(+/-1.5% of full scale)
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time : 45 Days
FOB Port : Ningbo or Shanghai
