Connection types:

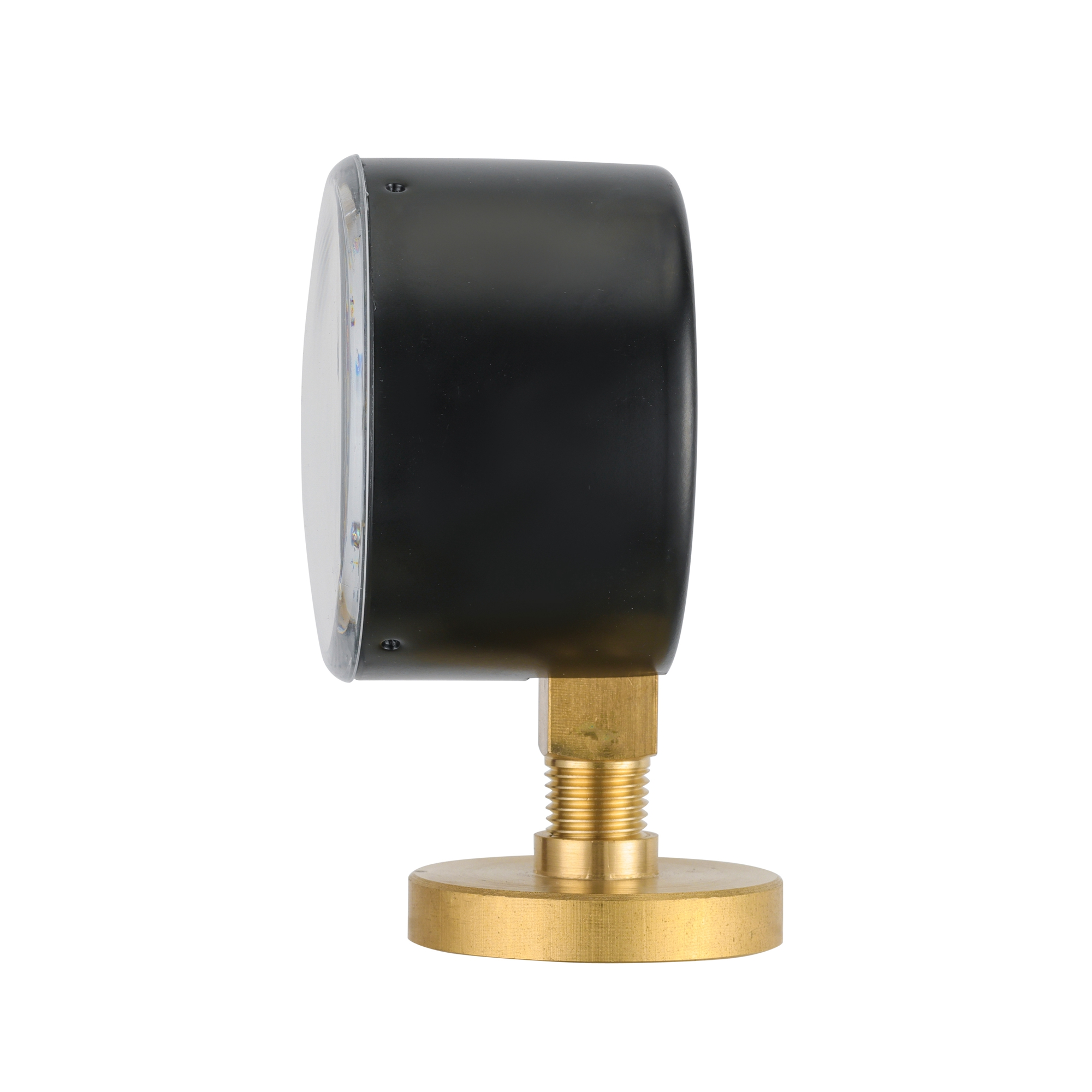

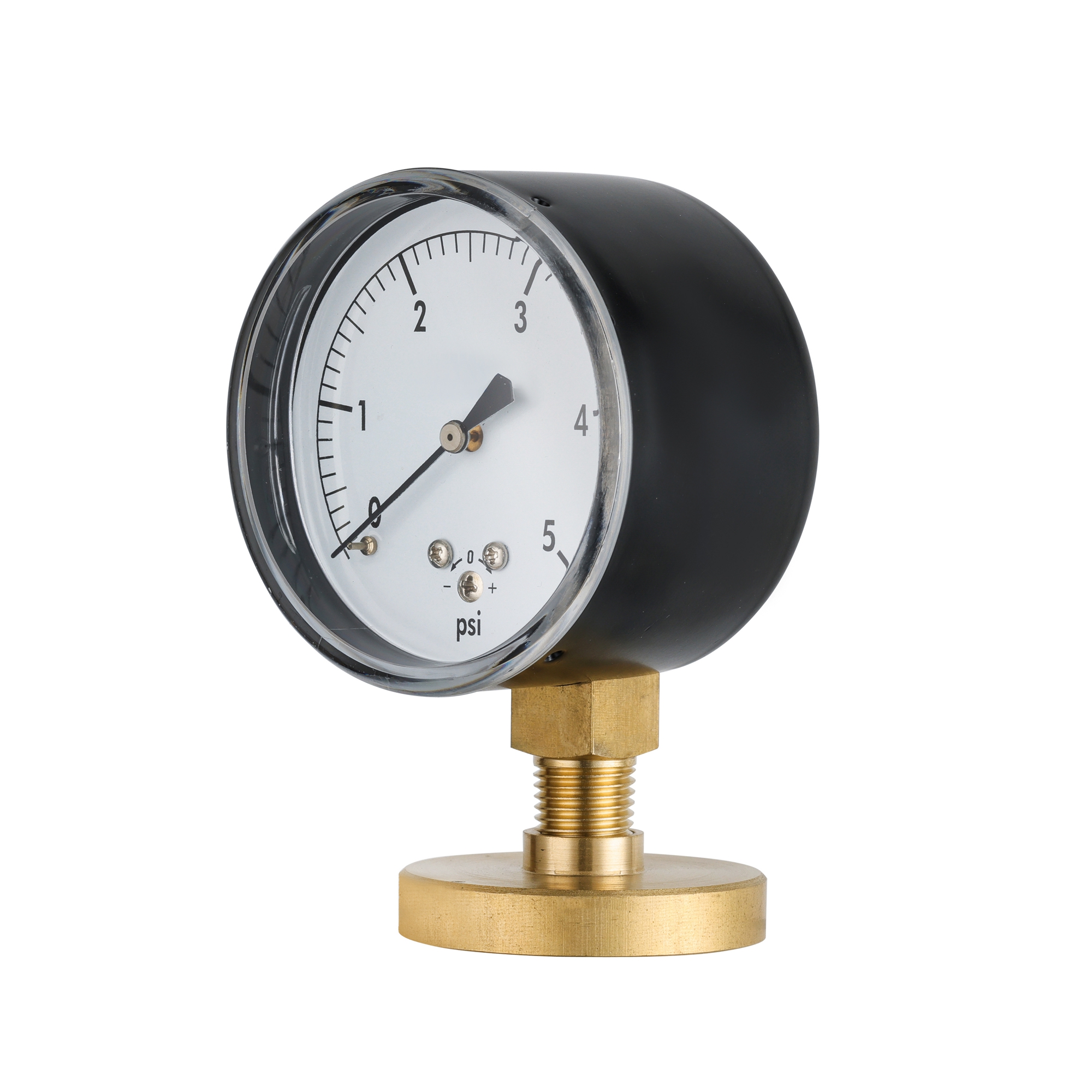

P-A type (bottom mount)
pressure gauge with u-clamp
Application:
water, air, gas, pump, compressor, regulator and working fluid not corrosive to wetted parts
Specification
Size: 2.5”(63mm)
Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar)
Dial: white aluminum with markings and graduations
Window: polycarbonate, glass, plastic
Pointer: black finished aluminum
Case: black painted steel, chrome plated steel, polished brass
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi
Connection: 1/4" PT, NPT, BSP thread
Mounting: bottom
Accuracy: 1.2"~2"(+/-2.5% of full scale), 2.5"up (+/-1.5% of full scale)
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time :45 Days
FOB Port :Ningbo or Shanghai
