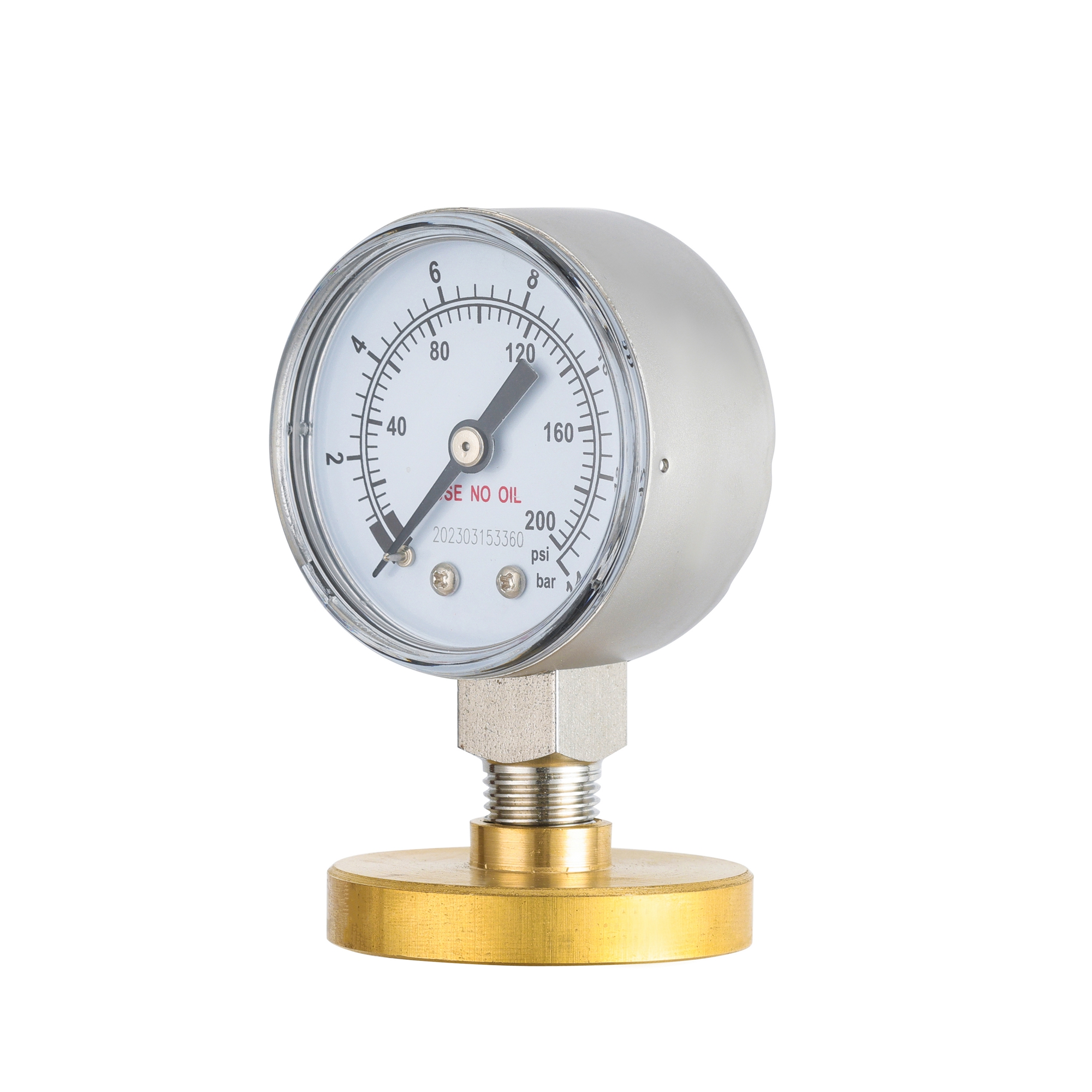

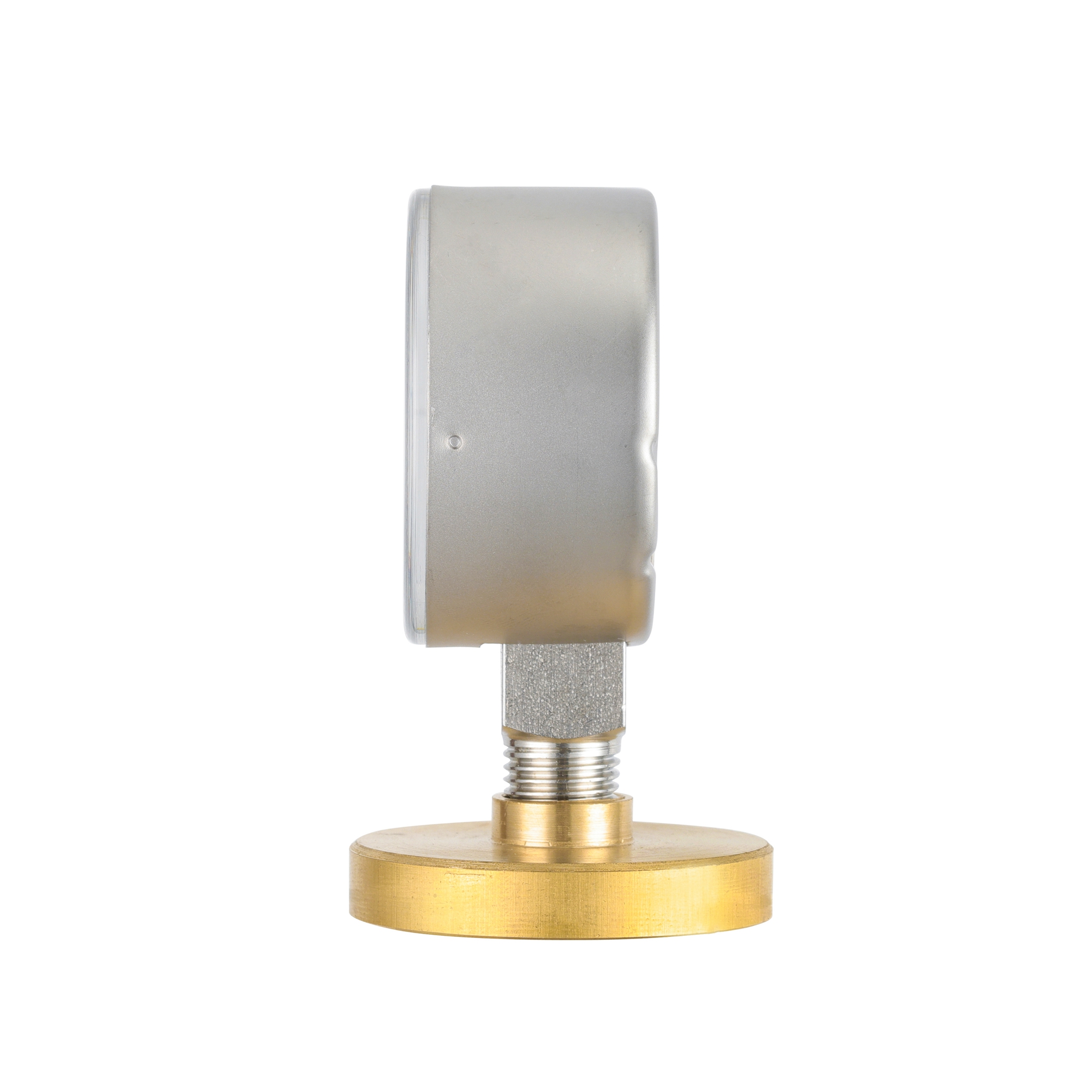

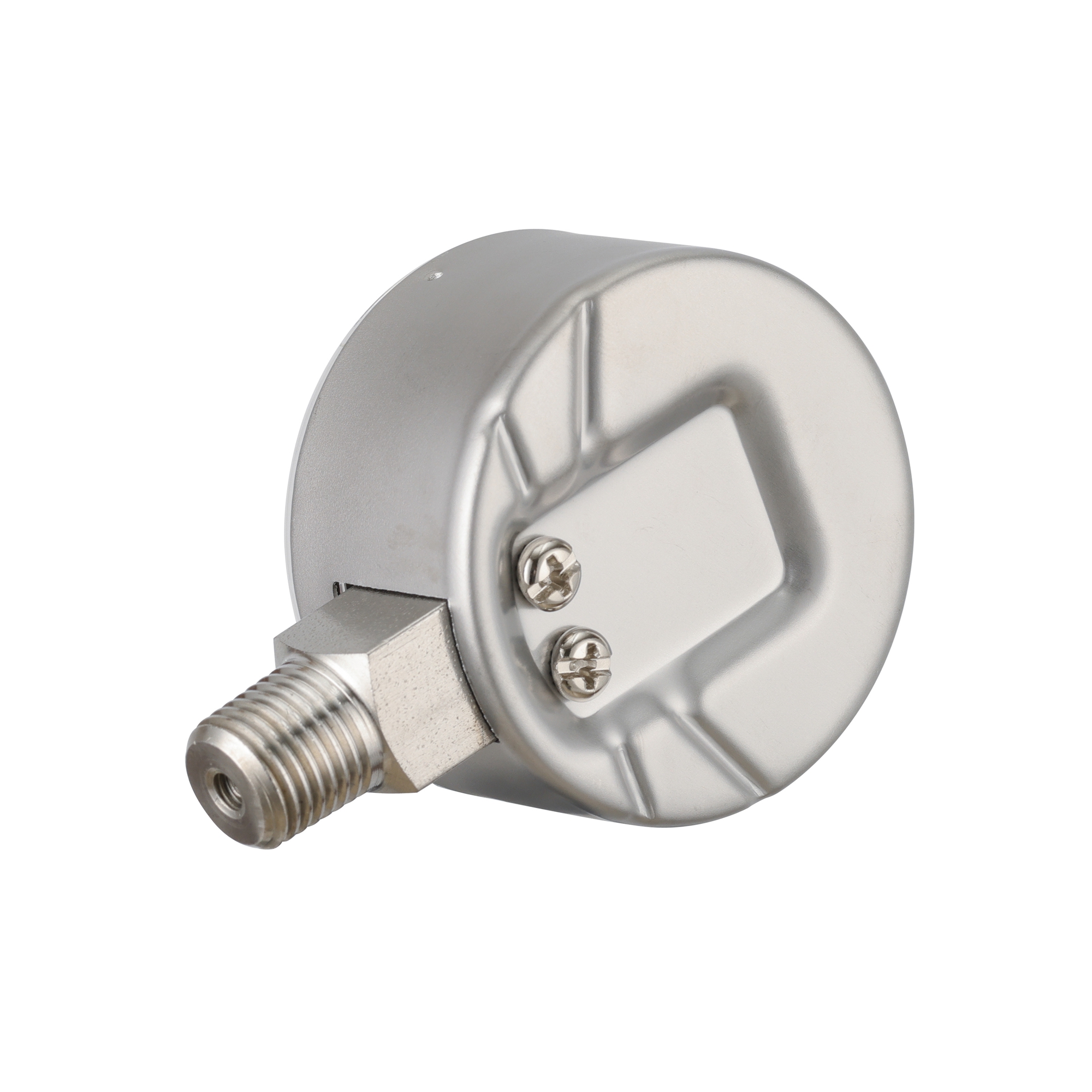

Connection types:
OX-A type (bottom mount, for oxygen)
AC-A type (bottom mount, for acetylene)
AP-A type (bottom mount, gold painted case)
Application:
welding tank regulator service (low pressure for regulator, high pressure for tank)
Specification
Size: 2”(50mm) , 2.5”(63mm)
Measuring Range: 15 psi up to 4,000 psi (280 bar)
Dial: white aluminum with markings and graduations
Window: plastic, threaded polycarbonate
Pointer: black finished aluminum
Ring: gold painted steel, chrome plating steel, polished brass
Case: gold painted steel, chrome plating steel, polished brass
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube for 15 psi to 800 psi, spiral tube wound for 1,000 psi to 4,000 psi
Connection: 1/8", 1/4"PT, NPT, BSP thread
Mounting: bottom
Accuracy: 2"(+/-2.5% of full scale), 2.5"(+/-1.5% of full scale)
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time :45 Days
FOB Port :Ningbo or Shanghai
