Connection types:

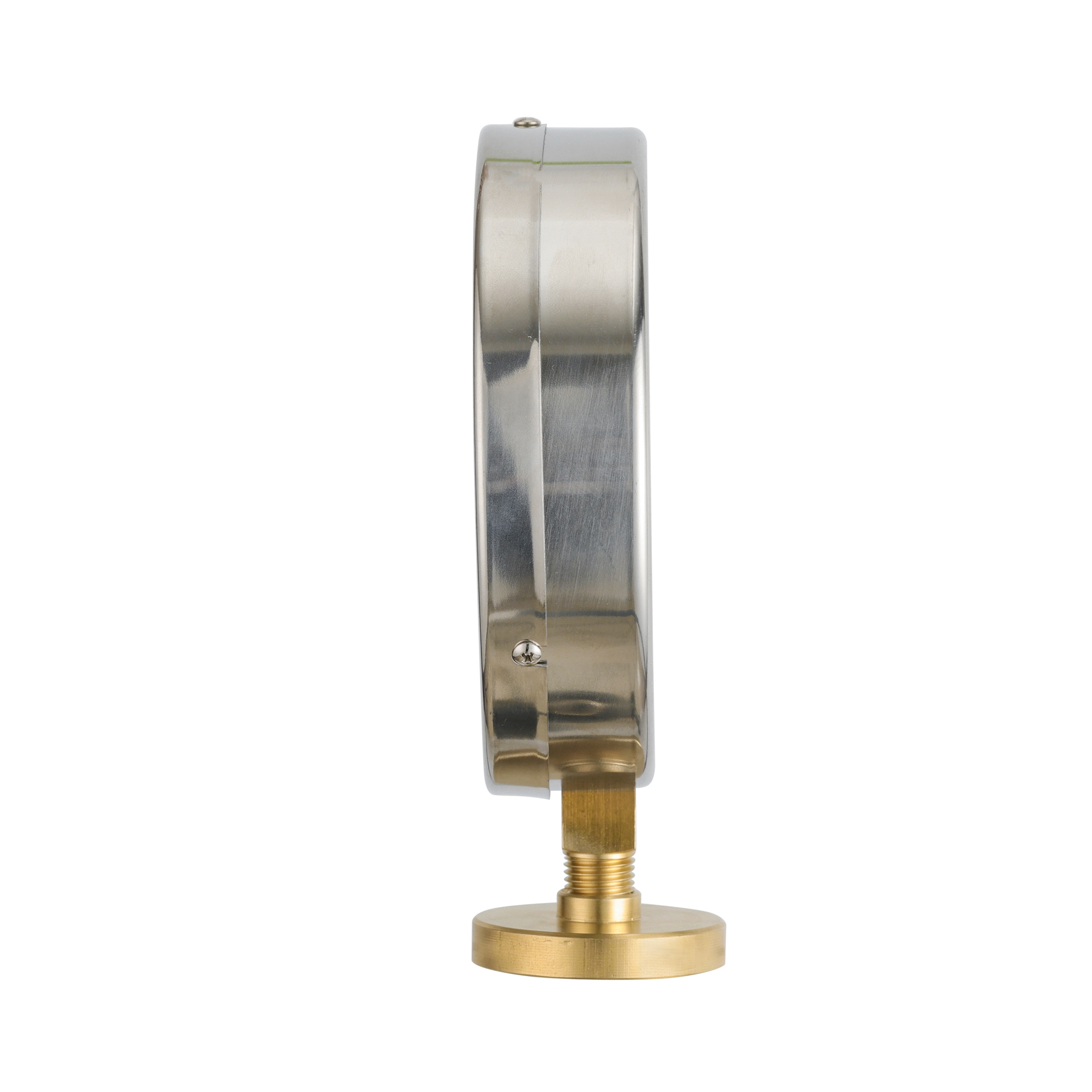

P-A type (bottom mount)
Application:
HVAC, water, air, gas, oil and working fluid not corrosive to wetted parts
Specification
Size: 4.5”
Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 500 psi (35 bar)
Dial: white aluminum with markings and graduations, re-calibrator screw from face of dial
Window: plastic
Pointer: black finished aluminum
Ring: sus304 stainless steel
Case: sus304 stainless steel
Movement: brass
Socket: brass
Bourdon Tube: phosphor bronze C-tube
Connection: 1/4"PT, NPT, BSP thread
Mounting: bottom
Accuracy: +/-1% of full scale
Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F)
Trade Information
Country of Origin : China
Main Export Markets : North America, Europe, Southeast Asia
Payment Details :
Payment Terms : T/T, Paypal
Delivery Details :
Lead Time :45 Days
FOB Port :Ningbo or Shanghai
